AT3
Product Service
RPP14M XHP

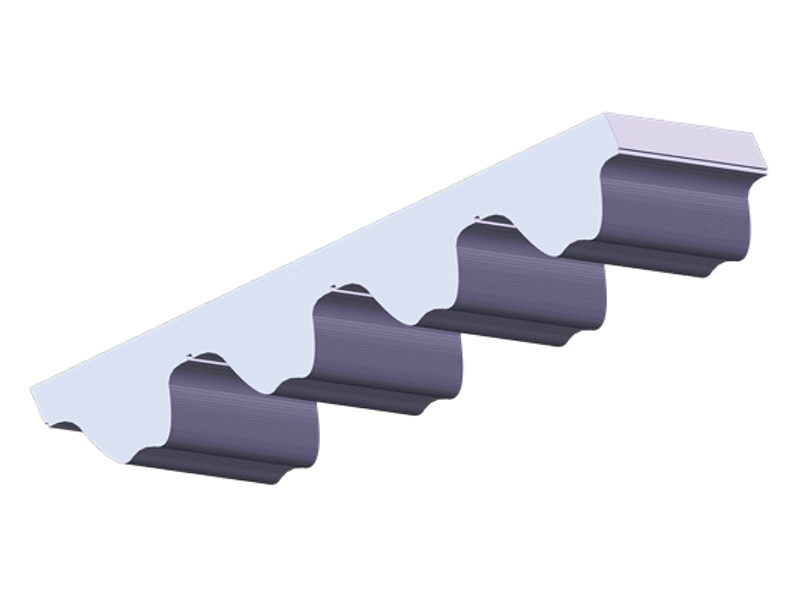

Thermoplastic polyurethane synchronous belt can be made into a circular shape by toothed connection.
The strength of the interface position is about 50% of the strength of the belt body.
The connecting belt can only be used for conveying equipment.
Additional NFT, NFB, PU, and APL roll materials can also be connected in a looped manner.
| STANDARD WIDTHS(mm) | 10 | 25 | 32 | 50 | 75 | 85 | 100 |
| WEIGHT(g/m) | 148 | 369 | 472 | 738 | 1106 | 1254 | 1475 |
| MATERIAL | Thermoplastic Polyurethane | ||||||
| COLOR | White | ||||||
| HARDNESS | 92 Shore A | ||||||
| BACK COVER | None | ||||||
| FABRIC | None | ||||||
| TENSION CORD | Galvanized Steel Wire Steel | ||||||
| WIDTH TOLERANCE | ±1 mm | ||||||
| THICKNESS | 10.4 ± 0.5 mm | ||||||
| LENGTH TOLE RANCE | ±0.4/1.2 mm/m | ||||||
| ROLL LENGTH | 100 m(Customizable) | ||||||
| PITCH | 14 mm | ||||||
