HTD5M-K6

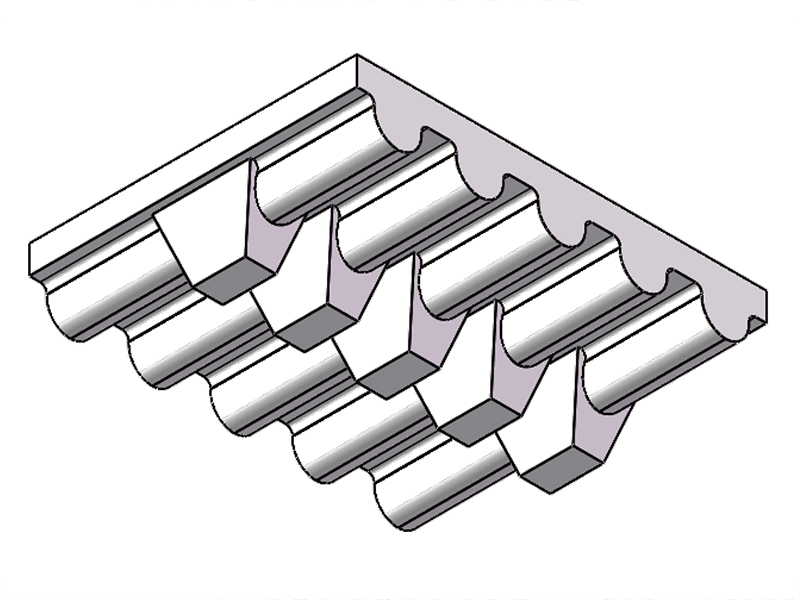

Thermoplastic polyurethane synchronous belt can be made into a circular shape by toothed connection.
The strength of the interface position is about 50% of the strength of the belt body.
The connecting belt can only be used for conveying equipment.
Additional NFT, NFB, PU, and APL roll materials can also be connected in a looped manner.
| STANDARD WIDTHS(mm) | 25 | 50 | 75 | 100 |
| WEIGHT(g/m) | 135 | 270 | 410 | 540 |
| MATERIAL | Thermoplastic Polyurethane | |||
| COLOR | White | |||
| HARDNESS | 92 Shore A | |||
| BACK COVER | None | |||
| FABRIC | None | |||
| TENSION CORD | Galvanized Steel Wire Steel | |||
| WIDTH TOLERANCE | ±0.5 mm | |||
| THICKNESS | 3.8 ± 0.2 mm | |||
| LENGTH TOLE RANCE | ±0.8 mm/m | |||
| ROLL LENGTH | 100 m(Customizable) | |||
| PITCH | 5 mm | |||
